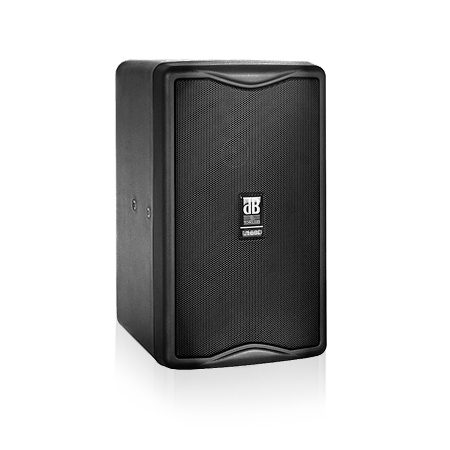

L 160D
A powerful yet surprisingly light cabinet, the remarkably compact L160D offers a variety of connection options to provide convenient sound reinforcement for multimedia applications.
Paired with a DSP, the two 5“ phase-corrected loudspeakers deliver astonishingly high sound pressure levels for their size and an amazingly transparent and articulate sonic image.
The multifunctional housing offers wall-mount fixing points for permanent installation and a pole mount for portable use.
Paired with a DSP, the two 5“ phase-corrected loudspeakers deliver astonishingly high sound pressure levels for their size and an amazingly transparent and articulate sonic image.
The multifunctional housing offers wall-mount fixing points for permanent installation and a pole mount for portable use.
| Technical Data | |
| Speaker Type | 2-Way Active Speaker |
| Acoustical data | |
| Frequency Response [-10dB] | 70 – 20.000 Hz |
| Max SPL | 116 dB |
| HF | 1 “ |
| Type HF | Dome Tweeter, coaxial |
| Directivity | 85 x 75 ° |
| LF | 2x 5 “ |
| Amplifier | |
| Amp Technology | digipro® |
| Amp Class | Class D |
| Power PRG | 160 W |
| Cooling | Convection |
| Processor | |
| Controller | DSP 24bit/48kHz |
| System Presets | 8 |
| Limiter | Dual Active Peak, RMS, Thermal |
| Input | |
| Signal Input | 1x XLR Line In/Mic 1x 6.3mm phone jack 1x RCA cinch AUX with volume ctrl |
| Microphone Input | YES |
| Signal Output | 1x 6.3mm phone jack |
| Power Socket | VDE |
| Voltage Range | 110-120 – 220-240 V |
| Mechanics | |
| Housing | Polyporpylen PP |
| Angles Up | Monitor use 60° |
| Rigging Points | 2x M5 on side 2x M5 on bottom for accessories |
| Accessory | WB03, SN120 |
| Width | 200 mm (7.87 in) |
| Height | 335 mm (13.19 in) |
| Depth | 220 mm (8.66 in) |
| Weight | 5.2 kg (11.46 lbs) |
