LVX 15

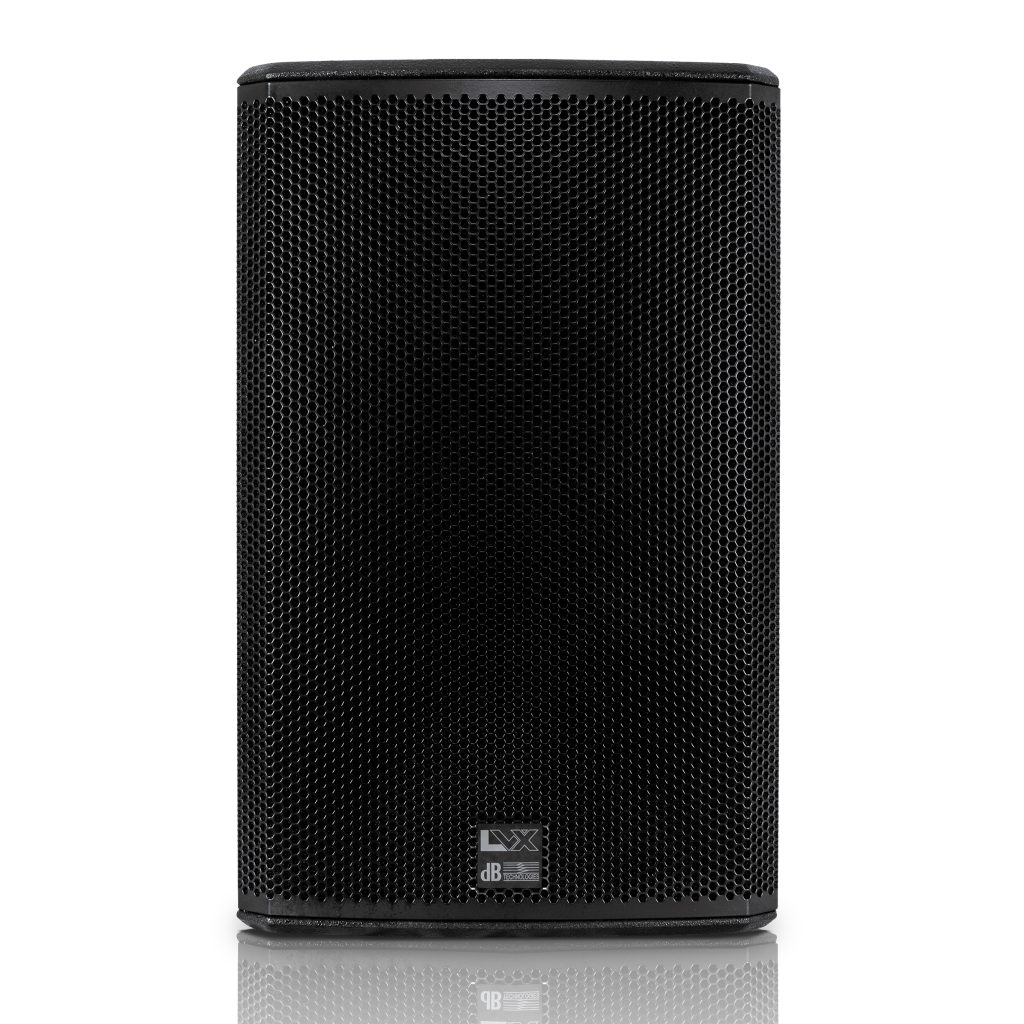

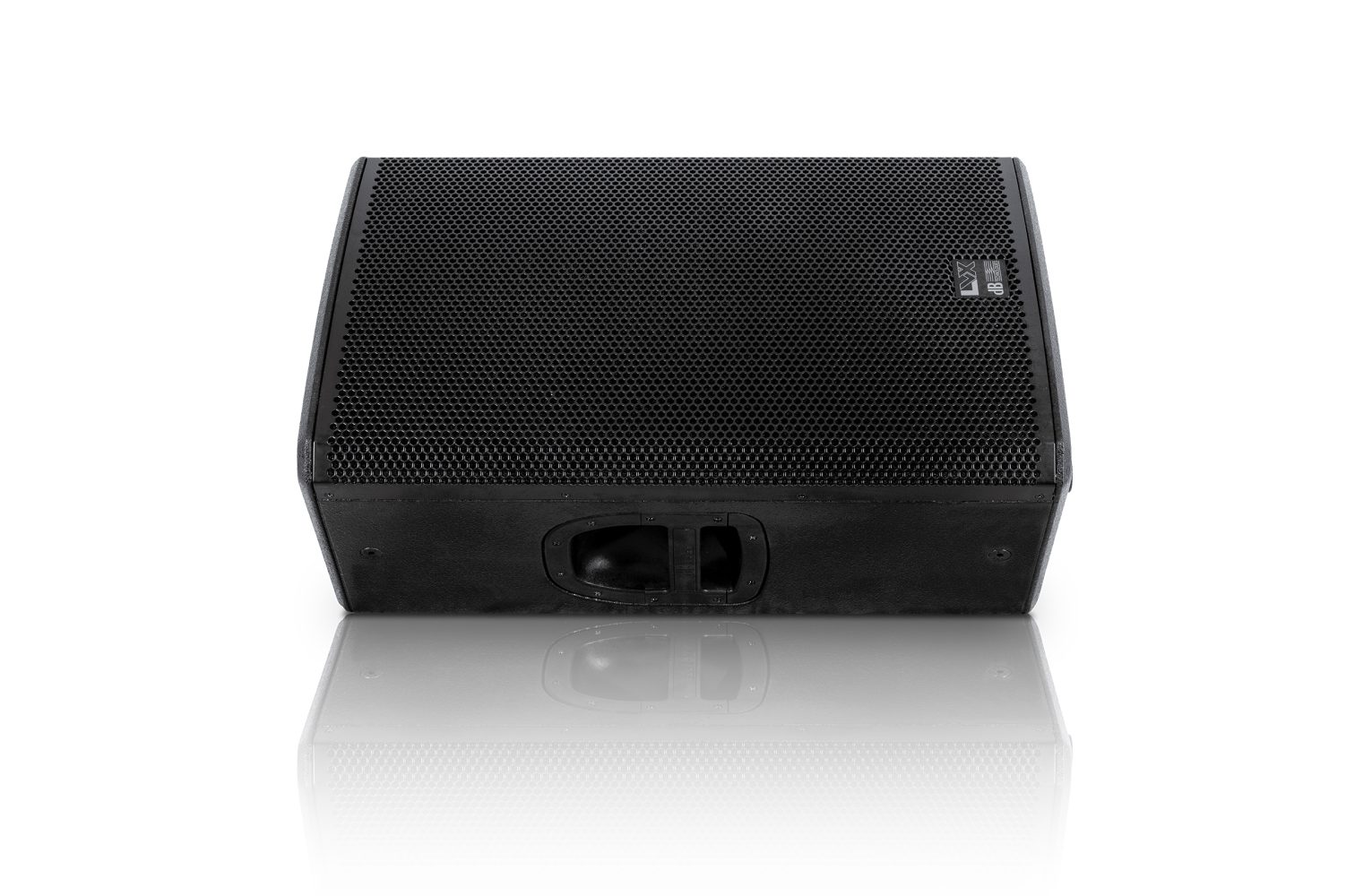

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance.  The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

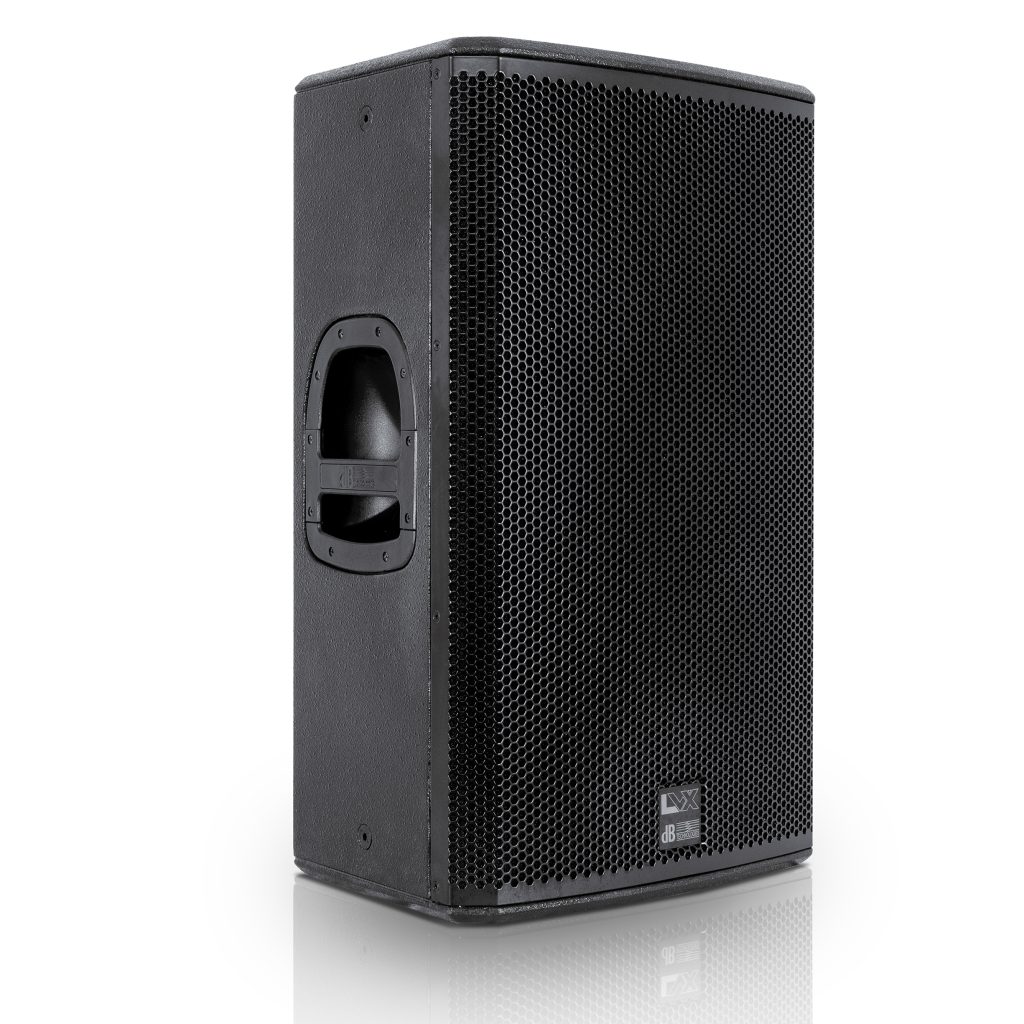

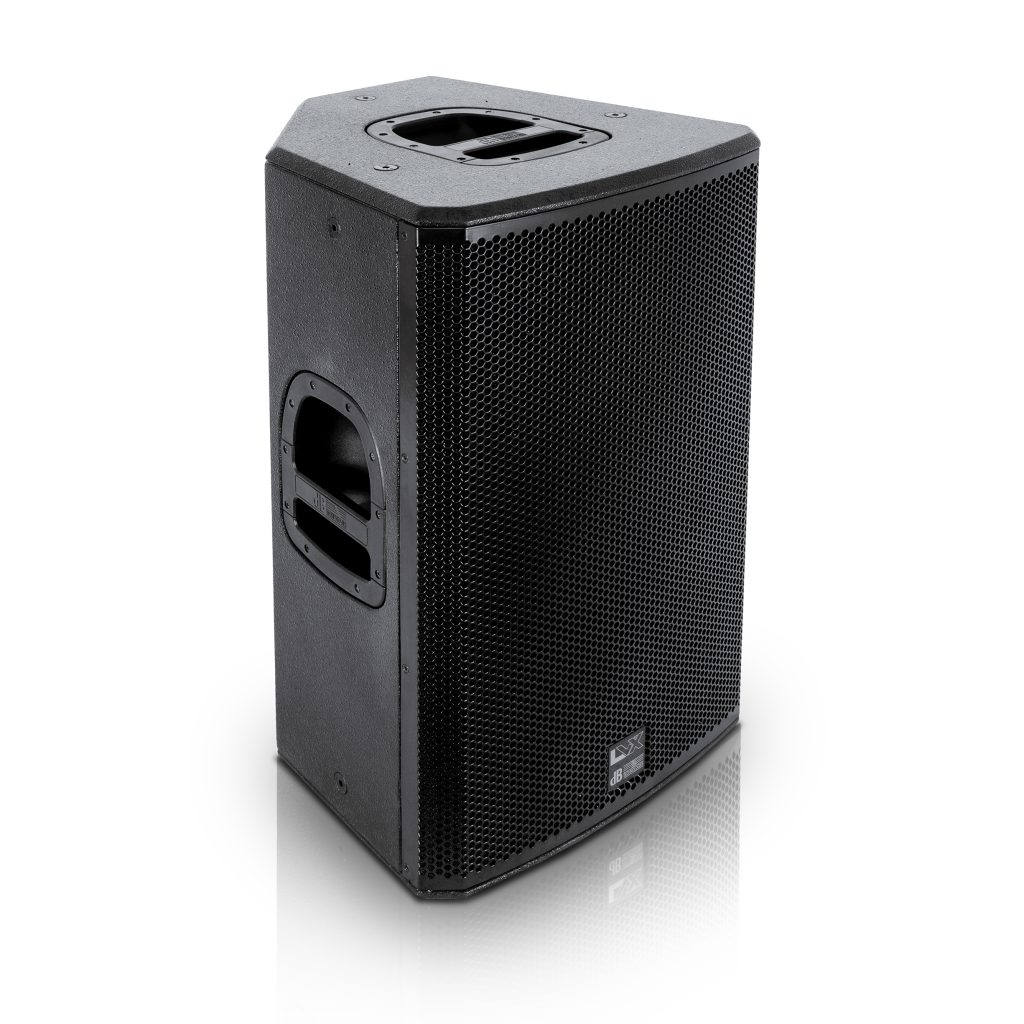

LVX 15 is provided with a top handle and 2 side handles to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

Specification

Technical Data
Speaker Type 2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB] 67-20,000 Hz
Frequency Response [+/- 3dB] 78-18,100 Hz
Max SPL 135 dB
HF 1×1.4″
Voice Coil HF 3″
Type HF Neodymium, Titanium Diaphragm
LF 2×10″
Voice Coil LF 2.5″
Type LF Neodymium Aluminium Phase Plug
Horizontal Directivity 100°
Vertical Directivity depends on array size and configuration
Amplifier
Amp Technology Digipro G3 [bi-amped]
Amp Class Class-D
Power RMS 900 W
Peak Power 1800 W
Cooling Convection
Power Supply 900 W SMPS with Auto-range PSU
Processor
Controller DSP 56 bit
AD/DA Converter 24 bit/48 KHz
Limiter Dual Active Multiband Peak, RMS, Thermal
Processing (filters) FIR Linear Phase
Crossover Frequency LF-HF 950 Hz
Slope LF-HF 24 dB/Octave

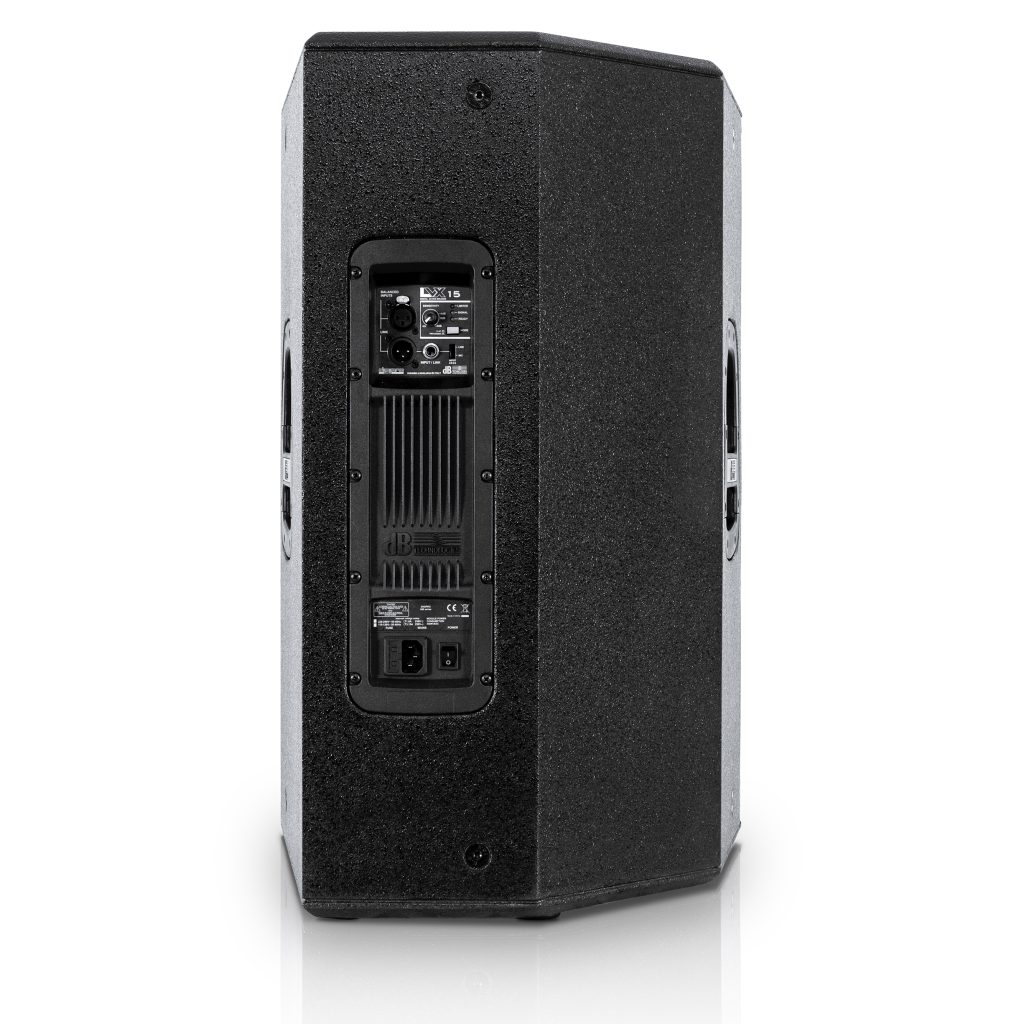

Input
Signal Input 1xXLR fem, Bal.
Signal Output 1xXLR male, Bal.
Network RDNet remote control RJ45 connector IN/OUT
Power Socket 1xPowerCon TRUE1 IN

1xPowerCon TRUE1 Out

Controls 1xSpeakers Coupling (7 presets)

1x HF Compensation (8 presets)

1XInput Attenuation Rotary Switch

Mechanics
Housing Multiplex Plywood

Polyurea painted

Housing Design Trapezoidal 10°
Handles 2x side
Rain Cover Included
Rigging Points Integrated rigging hardware
Width 720 mm (28.35 in)
Height 320 mm (12.6 in)
Depth 520 mm (20.47 in)
Weight 28.6 Kg (63.00 lbs)
