L-PJM10A

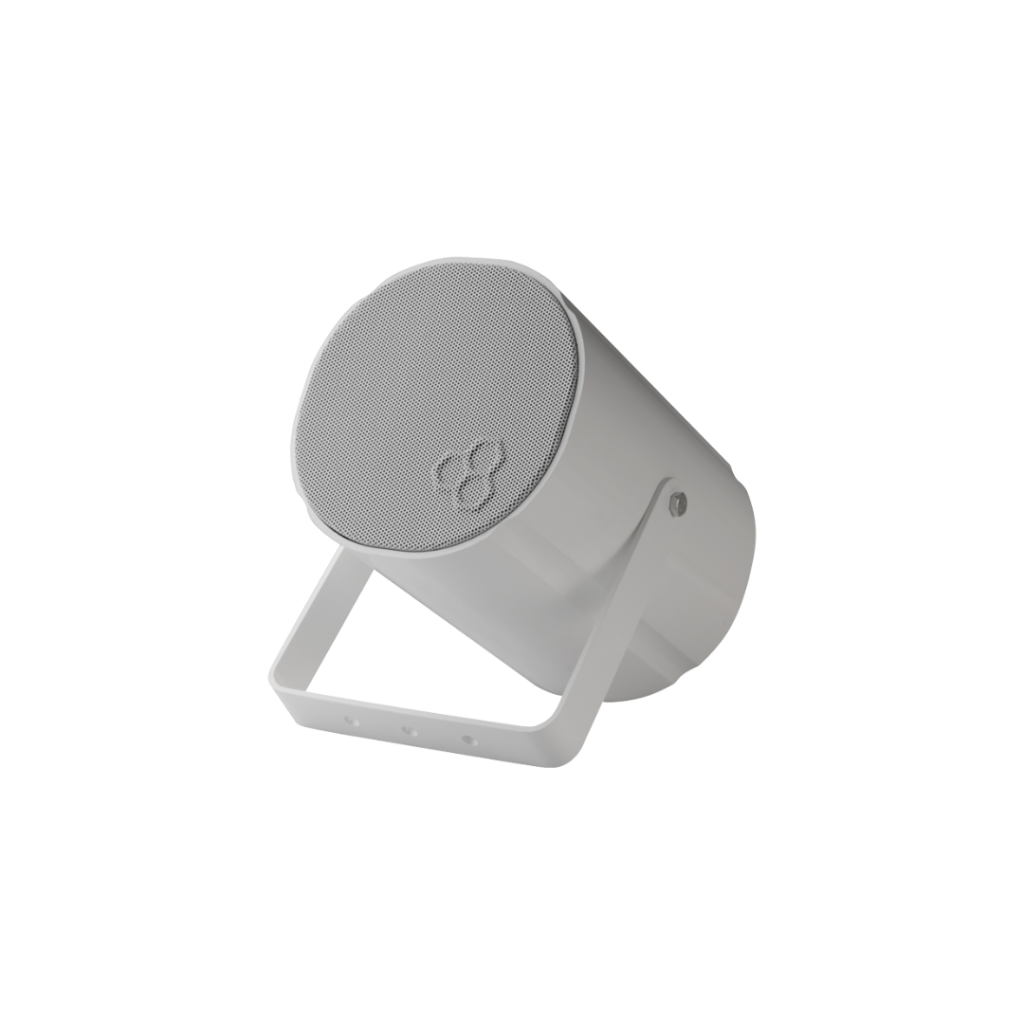

Aluminium Unidirectional Projection Loudspeaker
Offering power ratings of 10W (L-PJM10A) and 20W (L-PJM20A), these two speakers are very popular for both outdoor and indoor use. They both come with a fire-resistant cable and boast sturdy aluminium construction in an elegant, white body.
FEATURES
- Frequency Range (-10dB) : 150Hz – 20 KHz
- Dispersion angle (1 KHz / -6 dB) : 180°
- Max Power : 20W
- Rated Power : 10W
- Power taps @ 100 V : 10 W / 5 W / 2.5 W / 1.25 W
- SPL at 10 W / 1 W ( 170 Hz – 20 kHz , 1 m) : 98 dB / 89 dB
| Model No. | L-PJM10A |
|---|---|
| Frequency response(- 10 dB) | 150 Hz – 20 KHz |
| Dimensions | Φ 140 × 195 mm |
| Rated Power | 10 W |
| Max Power | 20 W |
| Rated Impedance | 1 KΩ / 2KΩ / 4 KΩ / 8 KΩ |
| Color | White(RAL 9003) |
| Connector | Fire-resistant cable |
| Power taps @ 100V | 10 W / 5 W / 2.5 W / 1.25 W |
| Dispersion angle(1k HZ / -6db) | 180° |
| Rated input voltage | 100 V / 70 V |
| Weight | 2.62 Kg |
| Operating temperature | -25°C to +55°C |
| Storage temperature | -40°C to +70°C |
| Relative humidity | < 95 % |
| Speaker Size | 5.25” |
| SPL at 10 W / 1 W(170HZ-20kHZ, 1m) | 98 db / 89db |
