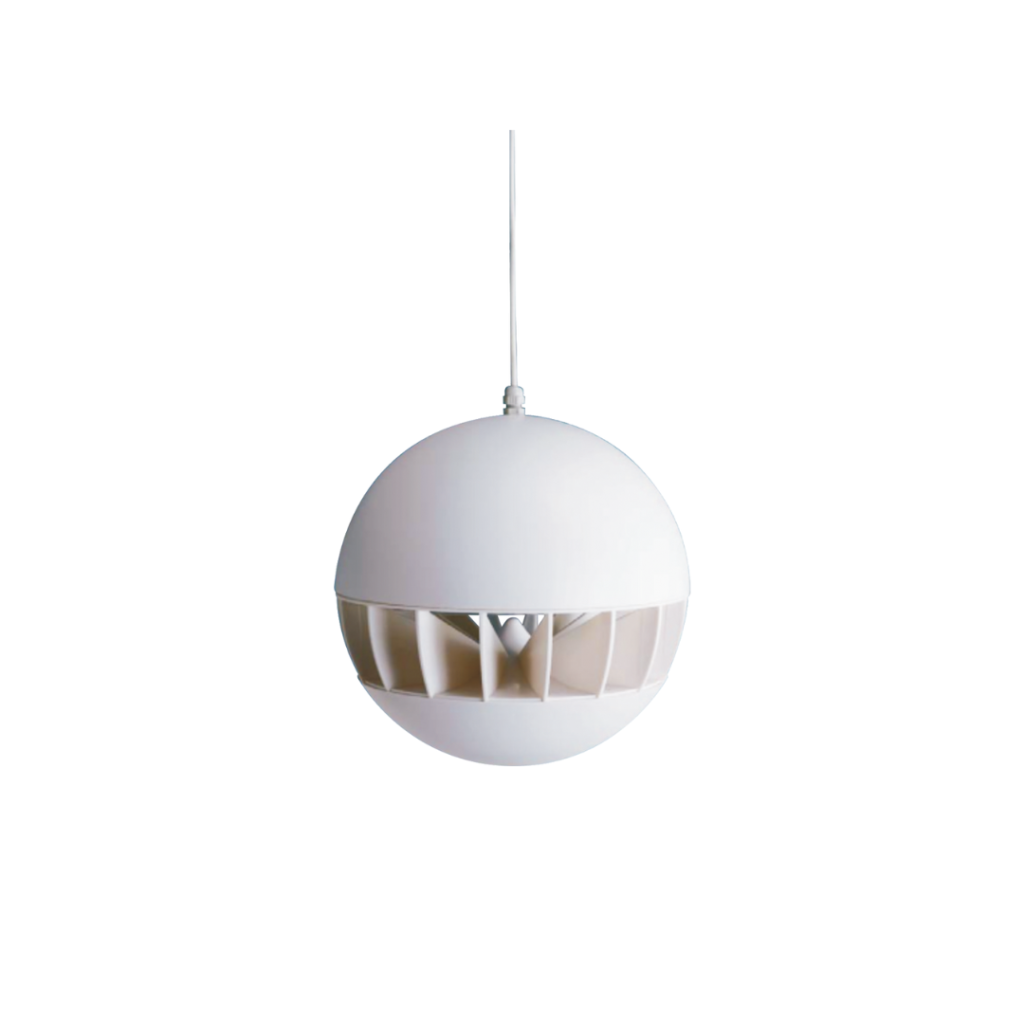

L-PPP20A
Pendant Loudspeaker
Easy to install and use, the L-PPP20A features a robust fire-resistant ABS enclosure and simple power setting. Weighing just over 2 kg, this speaker is suitable for a wide variety of applications such as convention and exhibit halls, atriums, restaurants and malls.
FEATURES
- Frequency Range (-10dB) : 80Hz – 12 KHz
- Rated input voltage : 100 V / 70 V
- Max Power : 30W
- Rated Power : 20W
- Power taps @ 100 V : 20 W / 10 W / 5 W
- SPL at 20 W / 1 W ( 100Hz-6 KHz, 1 m ) : 103 dB / 90 dB
| Model No. | L-PPP20A |
|---|---|
| SPL at 20W/1W(100Hz-6KHz,1m) | 103 dB / 90 dB |
| Dimensions | Φ 254 mm |
| Rated Power | 20 W |
| Max Power | 30 W |
| Rated Impedance | 500 Ω / 1 K Ω / 2 KΩ |
| Color | White |
| Connector | wire cable |
| Power taps @ 100V | 20 W / 10 W / 5 W |
| Dispersion angle(1k HZ / -6db) | Horizontal 360°, Vertical 140° – 160° |
| Rated input voltage | 100 V / 70 V |
| Weight | 2.2 Kg |
| Operating temperature | -25 °C to + 55°C |
| Storage temperature | -40 °C to + 70°C |
| Relative humidity | < 95% |
| Speaker Size | 8” |
