LP-IG
Link bracket for all Ingenia models. Sold in pairs
dB Technologies LP-IG (Link bracket for Ingenia)
In stock
Specification
| Technical Data | |

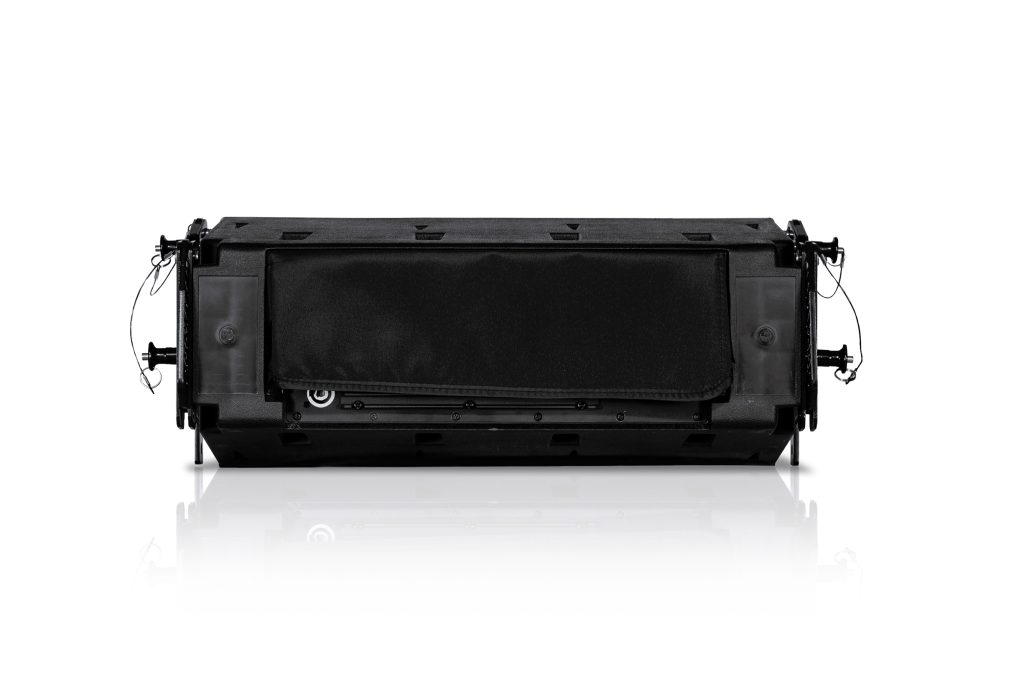

| Speaker Type | 2-way Active Line Array Module |
| Acoustical data | |
| Usable Bandwidth [- 6 dB] | 67-20,000 Hz |
| Frequency Response [+/- 3dB] | 78-18,100 Hz |
| Max SPL | 135 dB |
| HF | 1×1.4″ |
| Voice Coil HF | 3″ |
| Type HF | Neodymium, Titanium Diaphragm |
| LF | 2×10″ |
| Voice Coil LF | 2.5″ |
| Type LF | Neodymium Aluminium Phase Plug |
| Horizontal Directivity | 100° |
| Vertical Directivity | depends on array size and configuration |
| Amplifier | |
| Amp Technology | Digipro G3 [bi-amped] |
| Amp Class | Class-D |
| Power RMS | 900 W |
| Peak Power | 1800 W |
| Cooling | Convection |
| Power Supply | 900 W SMPS with Auto-range PSU |
| Processor | |
| Controller | DSP 56 bit |
| AD/DA Converter | 24 bit/48 KHz |
| Limiter | Dual Active Multiband Peak, RMS, Thermal |
| Processing (filters) | FIR Linear Phase |
| Crossover Frequency LF-HF | 950 Hz |
| Slope LF-HF | 24 dB/Octave |
| Input | |
| Signal Input | 1xXLR fem, Bal. |
| Signal Output | 1xXLR male, Bal. |
| Network | RDNet remote control RJ45 connector IN/OUT |
| Power Socket | 1xPowerCon TRUE1 IN
1xPowerCon TRUE1 Out |
| Controls | 1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets) 1XInput Attenuation Rotary Switch |
| Mechanics | |
| Housing | Multiplex Plywood
Polyurea painted |
| Housing Design | Trapezoidal 10° |
| Handles | 2x side |
| Rain Cover | Included |
| Rigging Points | Integrated rigging hardware |
| Width | 720 mm (28.35 in) |
| Height | 320 mm (12.6 in) |
| Depth | 520 mm (20.47 in) |
| Weight | 28.6 Kg (63.00 lbs) |
