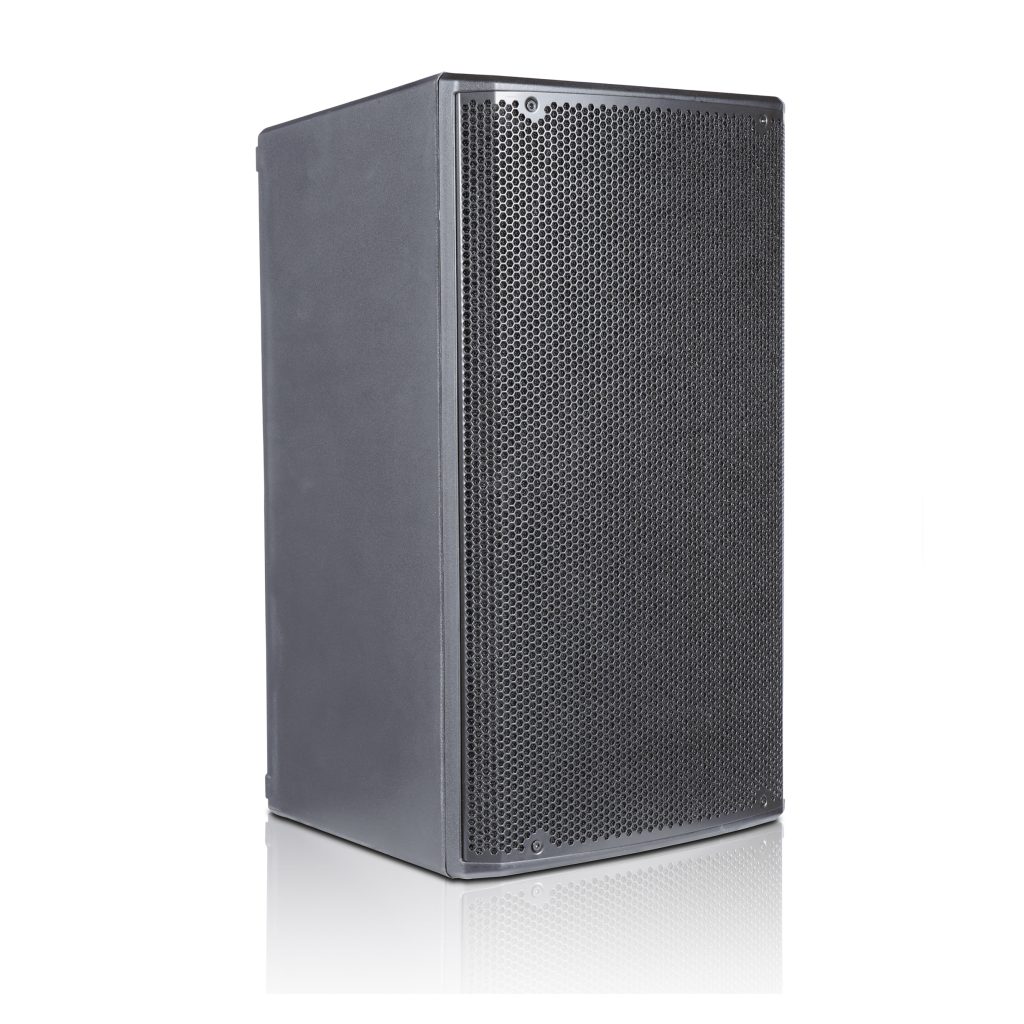

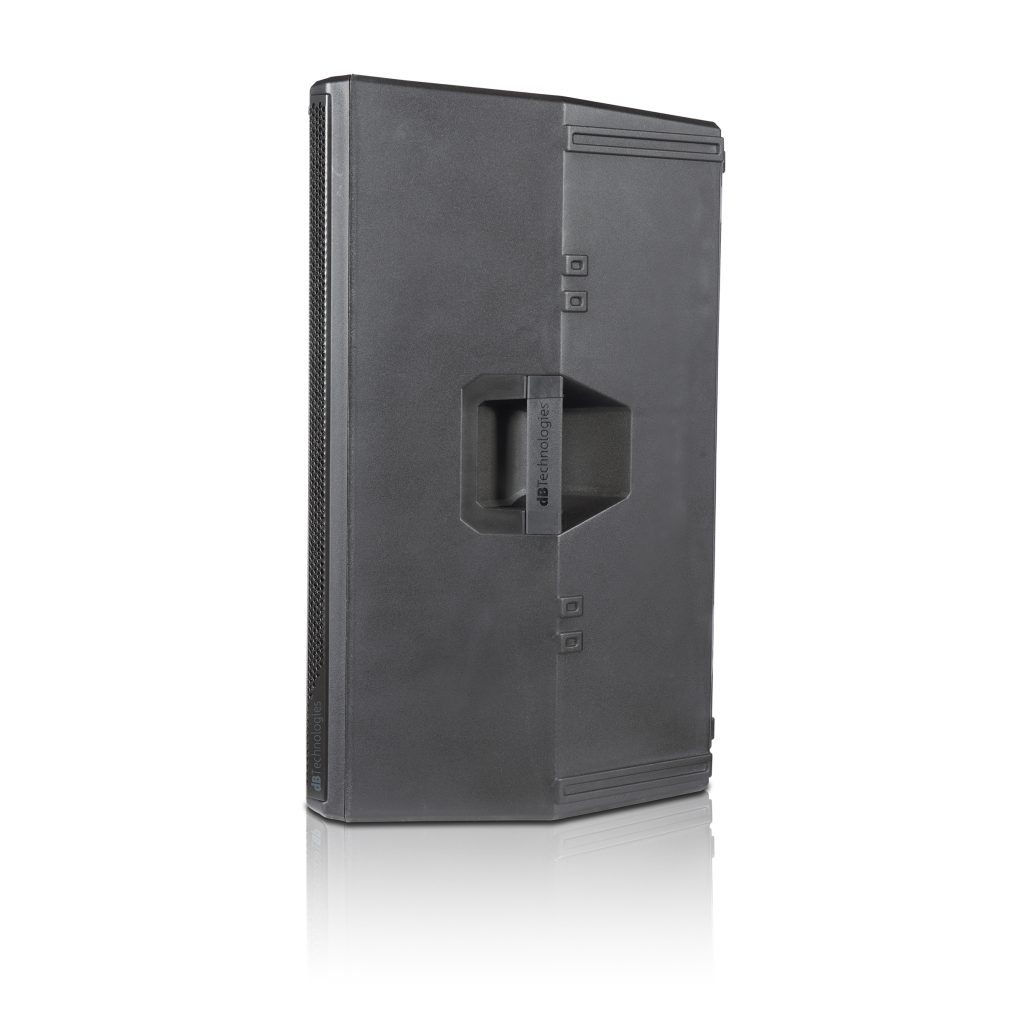

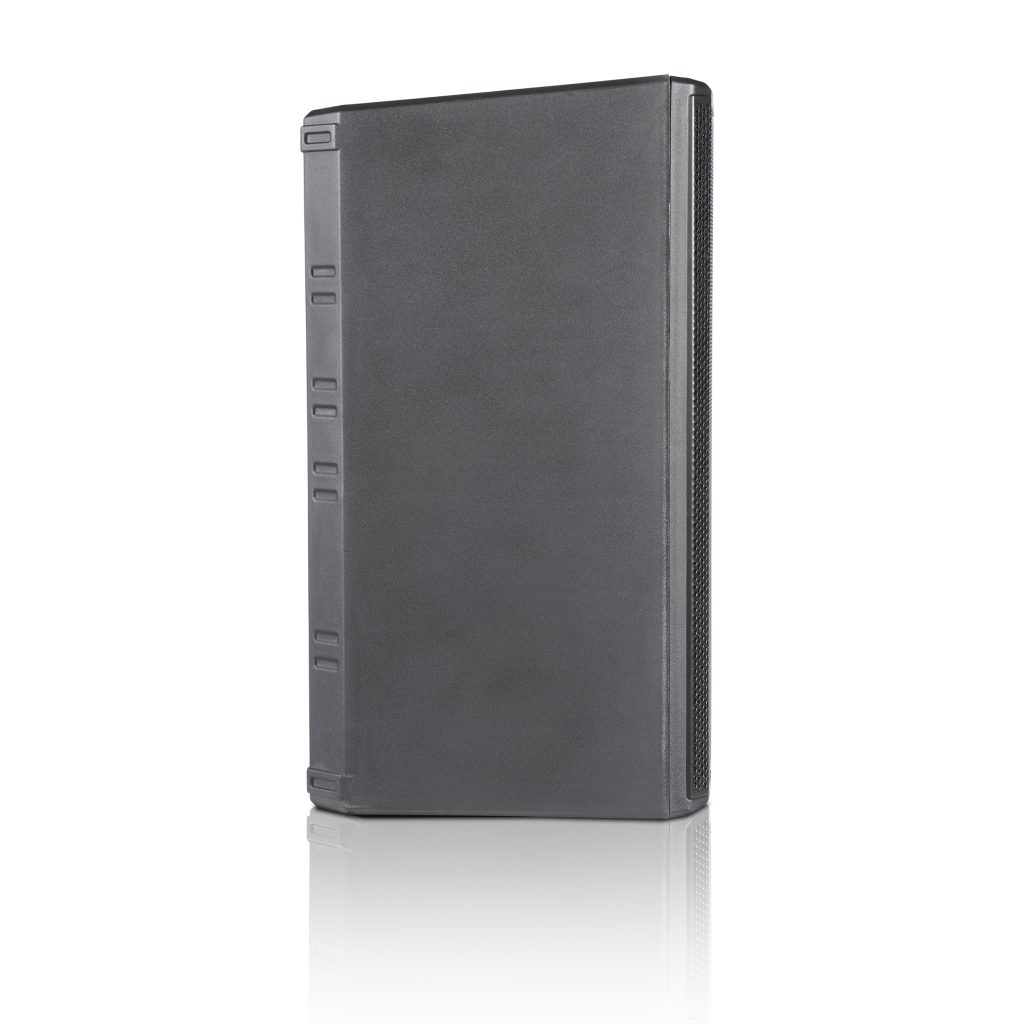

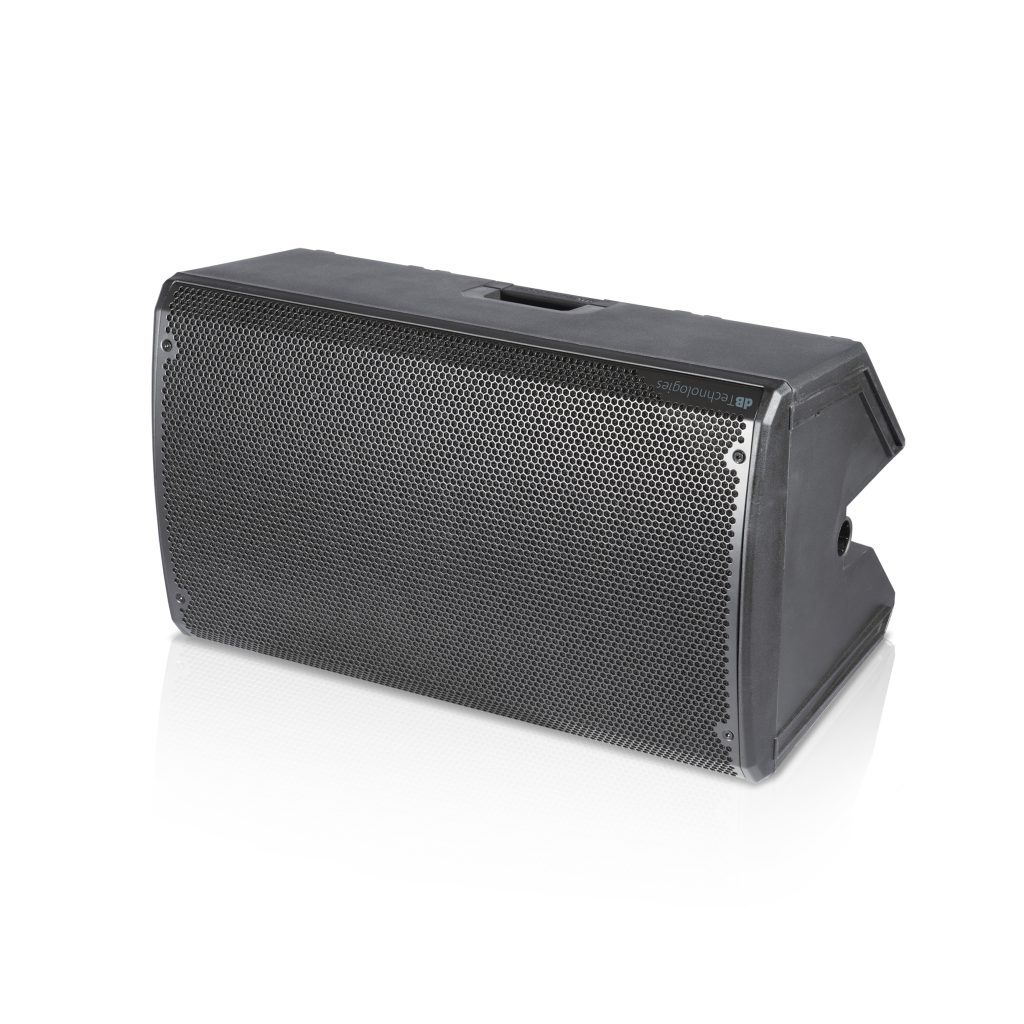

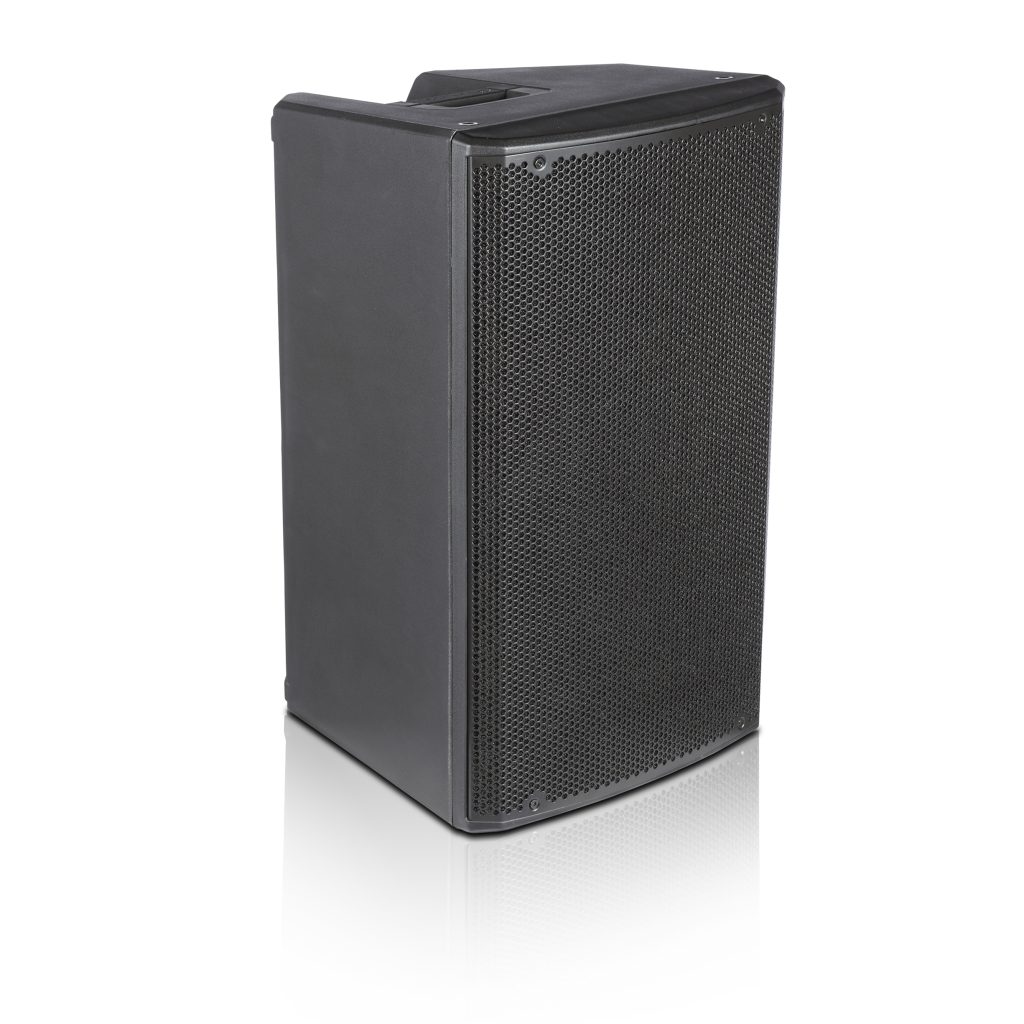

dB Technologies OPERA 15 (1200W, 15″ 2-Way Active Speaker)

RM0.00

In stock

WhatsApp For Order

SKU: OPERA 12-1 Category: Brand:
Share On:

OPERA 15



FEATURES
• 1200 W PEAK POWER
• 600 W RMS POWER
• NEWLY DESIGNED ASYMMETRICAL HORN
• ADVANCED DSP WITH FIR FILTERS
• 2 INPUT CHANNELS (MIC-LINE/MIC-INSTR)
• SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2)
• 8 EQ PRESETS
• FRESH FULL GRILLE DESIGN
• STAGE MONITOR USE



With the new OPERA series, dB Technologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Specification

Technical Data
Speaker Type 2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB] 67-20,000 Hz
Frequency Response [+/- 3dB] 78-18,100 Hz
Max SPL 135 dB
HF 1×1.4″
Voice Coil HF 3″
Type HF Neodymium, Titanium Diaphragm
LF 2×10″
Voice Coil LF 2.5″
Type LF Neodymium Aluminium Phase Plug
Horizontal Directivity 100°
Vertical Directivity depends on array size and configuration
Amplifier
Amp Technology Digipro G3 [bi-amped]
Amp Class Class-D
Power RMS 900 W
Peak Power 1800 W
Cooling Convection
Power Supply 900 W SMPS with Auto-range PSU
Processor
Controller DSP 56 bit
AD/DA Converter 24 bit/48 KHz
Limiter Dual Active Multiband Peak, RMS, Thermal
Processing (filters) FIR Linear Phase
Crossover Frequency LF-HF 950 Hz
Slope LF-HF 24 dB/Octave
Input
Signal Input 1xXLR fem, Bal.
Signal Output 1xXLR male, Bal.
Network RDNet remote control RJ45 connector IN/OUT
Power Socket 1xPowerCon TRUE1 IN

1xPowerCon TRUE1 Out
Controls 1xSpeakers Coupling (7 presets)

1x HF Compensation (8 presets)

1XInput Attenuation Rotary Switch
Mechanics
Housing Multiplex Plywood

Polyurea painted
Housing Design Trapezoidal 10°
Handles 2x side
Rain Cover Included
Rigging Points Integrated rigging hardware
Width 720 mm (28.35 in)
Height 320 mm (12.6 in)
Depth 520 mm (20.47 in)
Weight 28.6 Kg (63.00 lbs)
